New Decagon Octagon Tyvek Igloo Tent Design:

I am really pleased with this new tent as I have solved the problem of how to construct a pyramid tent without zips and which has a verandah to completely exclude the rain. It is a huge tent. As you can see, you can warm it with a fire out the front; there is plenty of room for two (plus dogs) and all their gear – and then some! There is ample standing room. It has a bathtub floor. You can lock it down to an invulnerable octagon in storm mode. It has a clothesline, three hangers, glasses etc pockets both sides. It needs ten stakes (@ 8-11 grams each = 110 grams) to erect and two poles (which can be cut up the bush – or use two-three hiking poles or you can buy Easton/Carbon ones here: http://www.questoutfitters.com/tent_poles.htm).

DSCN2011 comp

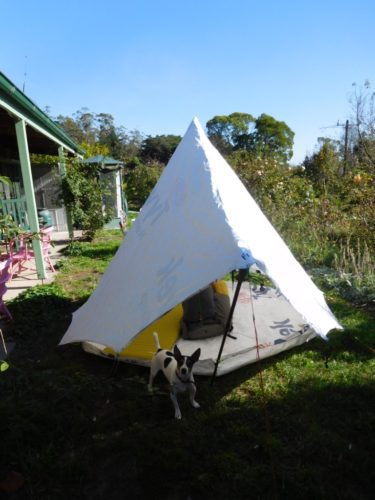

Front View.

In Tyvek it weighs 1,000 grams (including floor and tie-outs) and would weigh about 420 grams (under 550 inc. stakes) in Cuben Fibre (.67oz/yd2 camo for the roof & 1 oz/yd2 for the floor). It would weigh about 750 grams (without stakes) in 1.3oz/yd2 Silnylon. I overdid it on the bathtub floor (6” sides) width and height and length of beak. Could easily shave a couple of hundred grams off this weight on my next model. Two Easton poles (if needed) would weigh under 200 grams.

You could easily scale it down quite a bit and still fit two people and their gear in it. If you shortened the height of each triangle  and the width, the tent should weigh perhaps 60% of what it does now, say under 700 grams anyway – in Tyvek, and clearly about half that in cuben!



DSCN2005 comp

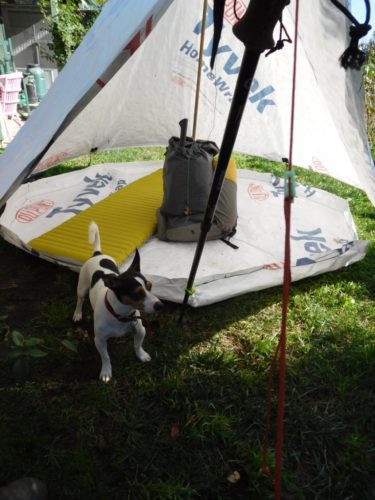

Inside View: plenty of room for two 6′ (1.8 m) Neoair mats and lots of gear.

DSCN2014

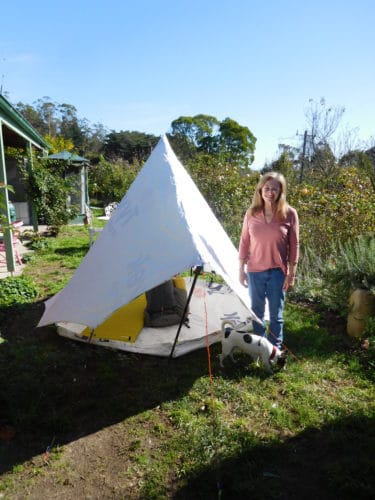

Plenty of standing room.

DSCN2020 comp

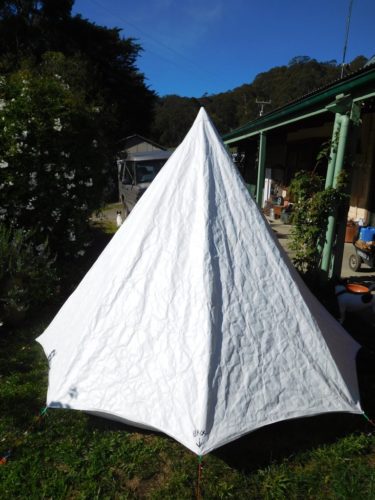

Rear View.

DSCN2018 comp

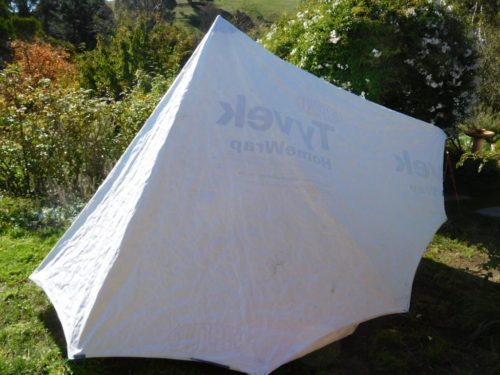

Side View.

DSCN2022 comp

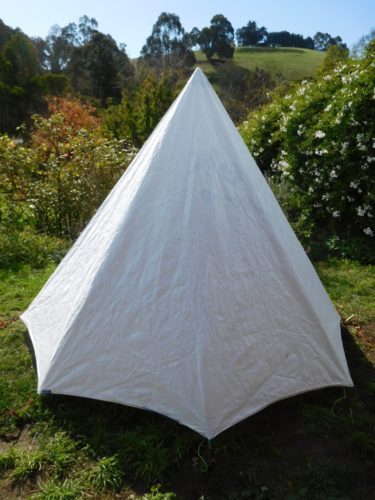

Storm Mode

As usual, make one of these for your own use but if you want to manufacture them, I would like some credit – and some cash, please!

NB: Here is a neat way to do the catenary curves: (http://www.tiergear.com.au/25/-make-your-own-adventure-blog) ‘using a length of 6mm dowel (or some other equivalent), and some heavy weights to keep it in place position the dowel so that it intersects the two corners and the mid catenary cut mark, and draw a line along the dowel.’

catenary curve

See also:

http://www.theultralighthiker.com/new-decagon-octagon-tyvek-igloo-tent-design/.

http://www.theultralighthiker.com/honey-i-shrank-the-tent/.

http://www.theultralighthiker.com/the-deer-hunters-tent/.

http://www.theultralighthiker.com/does-spot-like-to-hunt-deer/

http://www.theultralighthiker.com/tyvek-solo-fire-shelter/

http://www.theultralighthiker.com/tyvek-tent-designs/

http://www.theultralighthiker.com/tyvek-twin-fire-shelter/

http://www.theultralighthiker.com/one-pole-tyvek-tipi/

http://www.theultralighthiker.com/tyvek-bivi/

http://www.theultralighthiker.com/new-tyvek-forestertent-design/

http://www.theultralighthiker.com/tyvek-jack-russell-rain-coat-13-grams/

http://www.theultralighthiker.com/catenary-curves/

http://www.theultralighthiker.com/ultralight-chairgrounsheet/
