DIY Shoulder Pouches

My new Zpacks Arc Haul Ultra came without shoulder pockets (or pouches) as I could so easily make my own, as I have done this morning (forgetting to photograph the process too sorry!) If you have recently purchased a sewing machine as I have (often) suggested, you can make a pair too. I hope this post helps you do so.

I measured the space on the pack where they would have to fit and came up with dimensions of my four pieces of material as follows. Two pieces for the pack strap sleeves that started at 7″ x 6″ and two pieces for the pouches that stated at 6″ x 15″.

DIY Pack Strap Pockets

I first hemmed around the sleeve pieces.

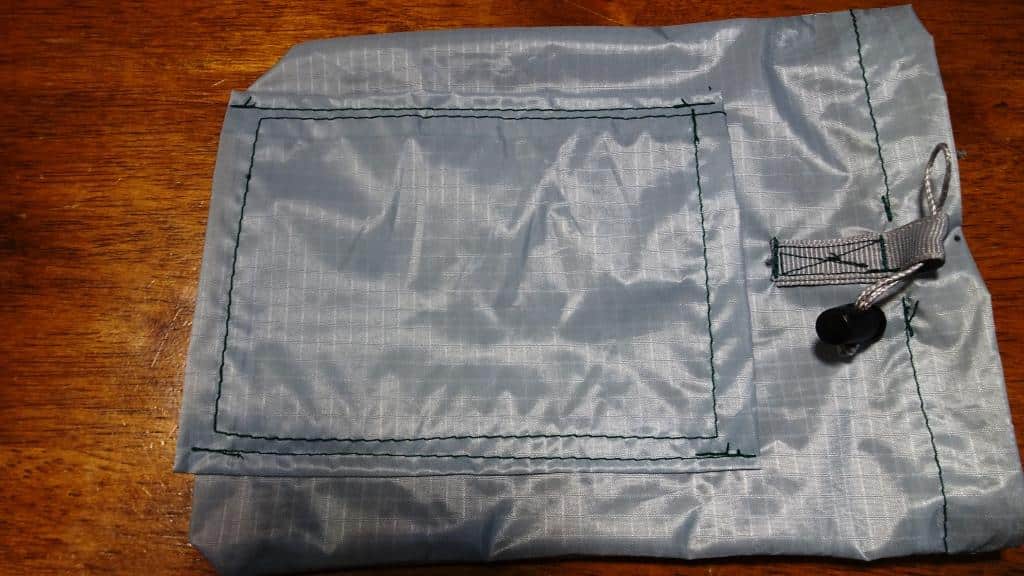

Then I sewed a loop of gross-grain ribbon on the outside of the pouch where it would need to be, then sewed on the sleeve just below it.

Then I turned it inside out and sewed up the hem on either side of the pocket or pouch.

Then I rolled the ‘casing down and sewed all around it leaving a approx 1/2″ gap just above the gross-grain loop.

Then I turned it right side out.

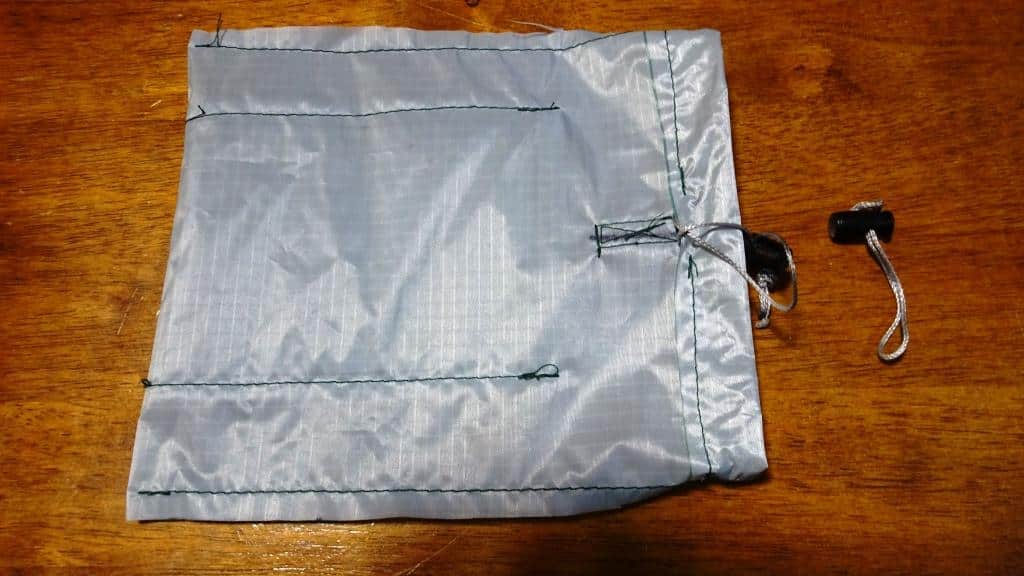

I threaded a piece of dyneema cord through the casing to make a draw-string closure.

DIY Pack Strap Pockets

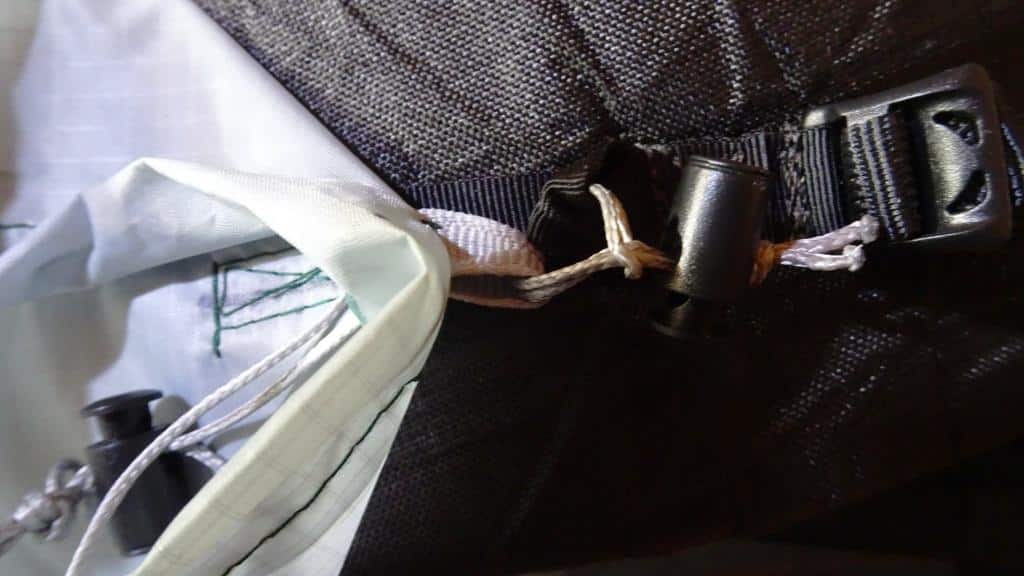

Another loop of dyneema cord and micro-cord lock make the securing loop which prevents the pouch from sliding down the pack strap. Most packs have daisy chains which you can secure to – otherwise you will have to sew another gross-grain loop to the pack straps.

DIY Pack Strap Pockets

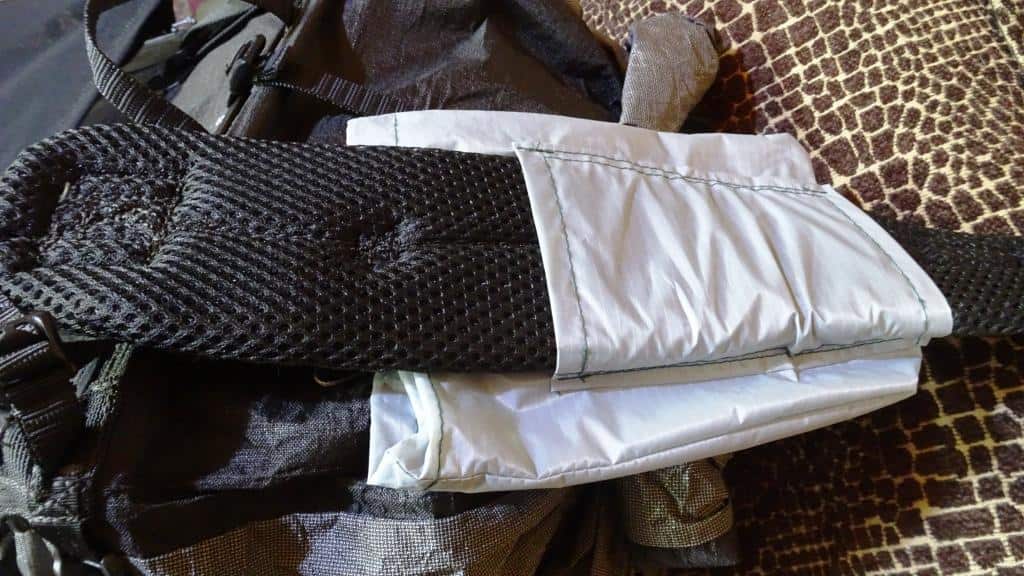

This cord lock loop is passed through the loop on the pouch and the corresponding one on the pack strap then the micro cord lock passed through the loop on the other end of itself (like the worm Ouroboros), and voila: it is finished.

DIY Pack Strap Pockets

DIY Pack Strap Pockets

Each pouch weighs 5.3 grams each including the two micro-cord locks and the dyneema. I could have made them lighter, but these will last a long time – likely longer than me! They took just a few minutes each to make. They were just made out of some ‘scrap’ 2oz/yd2 waterproof ripstop nylon I had lying around. Cost: Practically nothing. (I buy my micro-cord locks from Aliexpress.

Hope that’s clear.
