Ultralight Saw Experiments

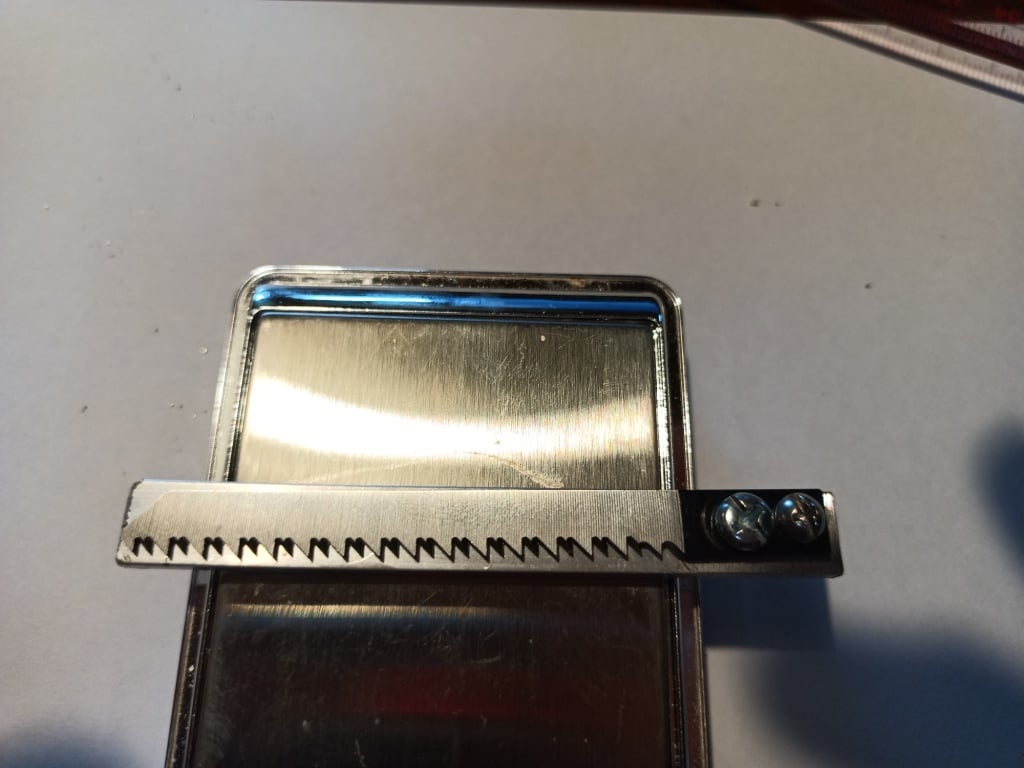

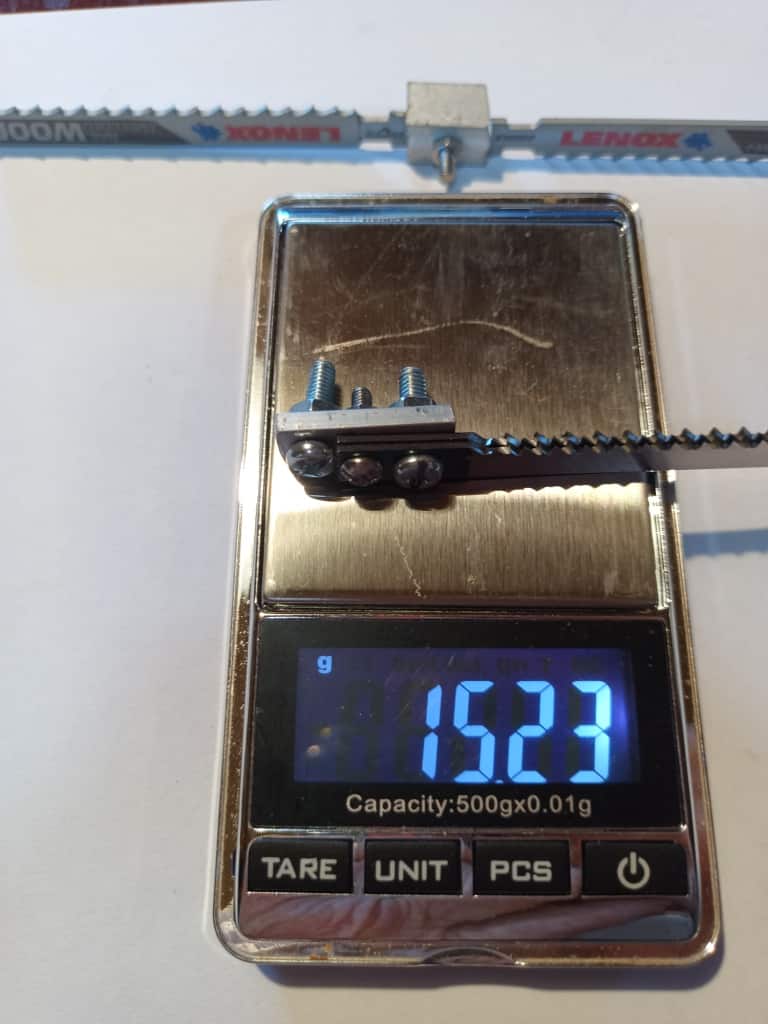

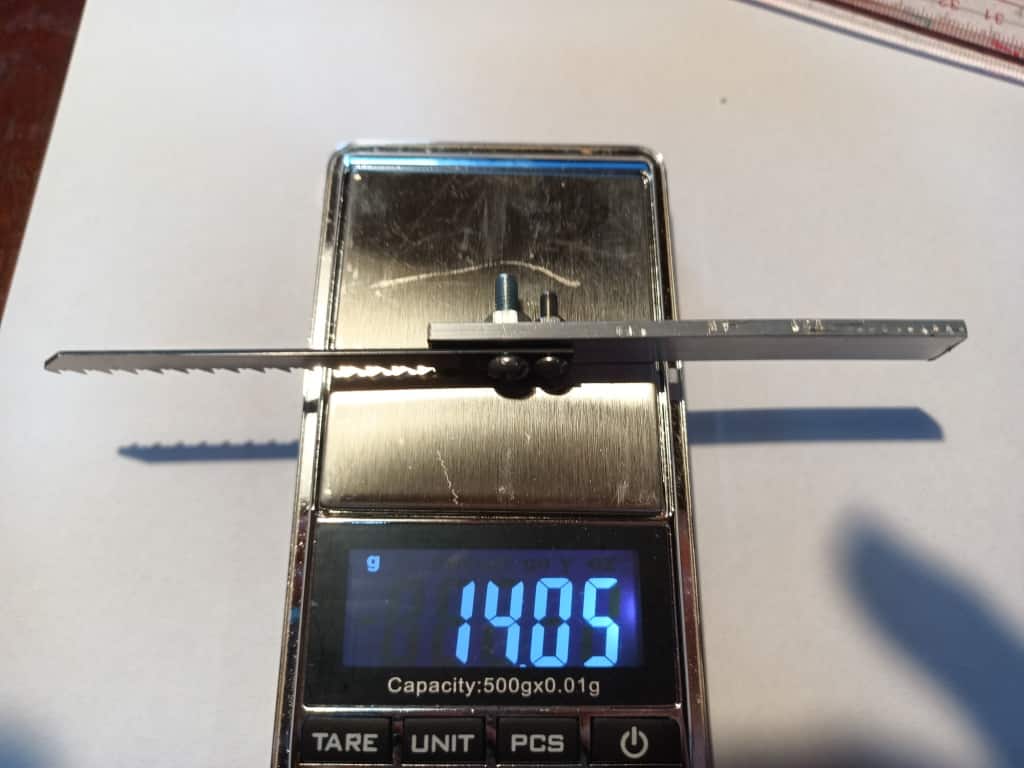

I have not been completely happy with a DIY saw which weighs around an ounce for making my Ultralight Tent Poles when I am up the bush. Seems like I ought to be able to save around 20 grams on that – so here is my first effort which weighs exactly half that at 14 grams. My goal is sub 10 grams.

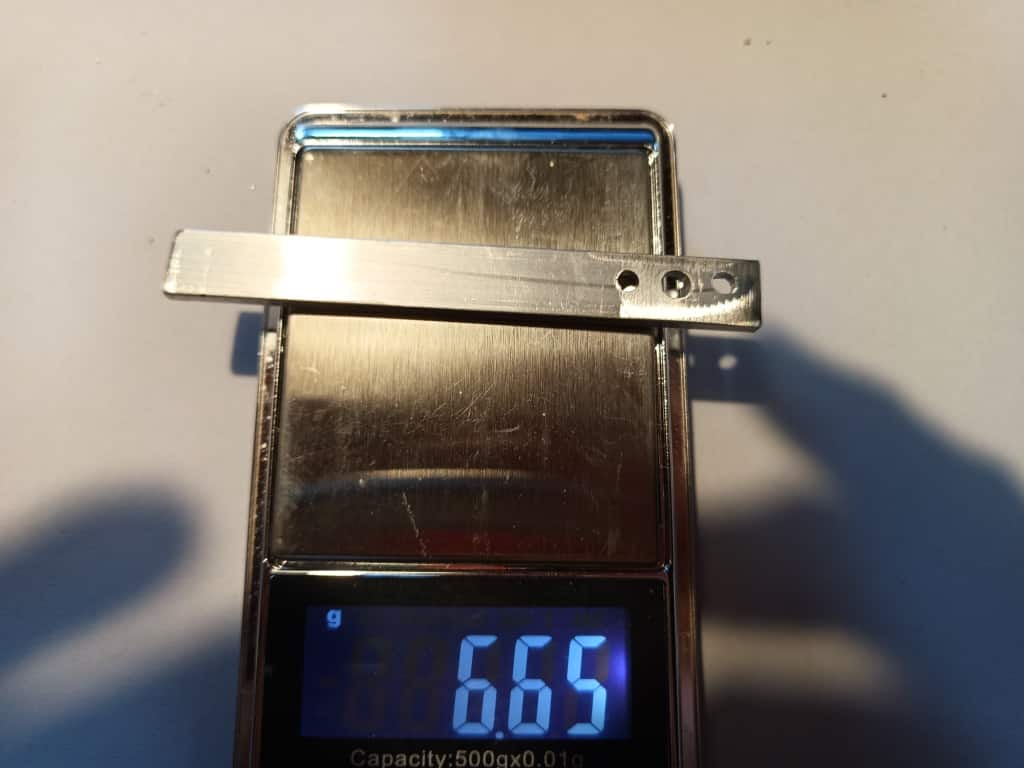

If I use 1cm x 1mm aluminium (this is 2mm) it will save  3.325 grams. If I cut off the ends of the bolts (1.5 grams) it will come in at under 10 grams (4.08 = 3.325 + 1.8 = 9.205). “It’s all downhill from there”.

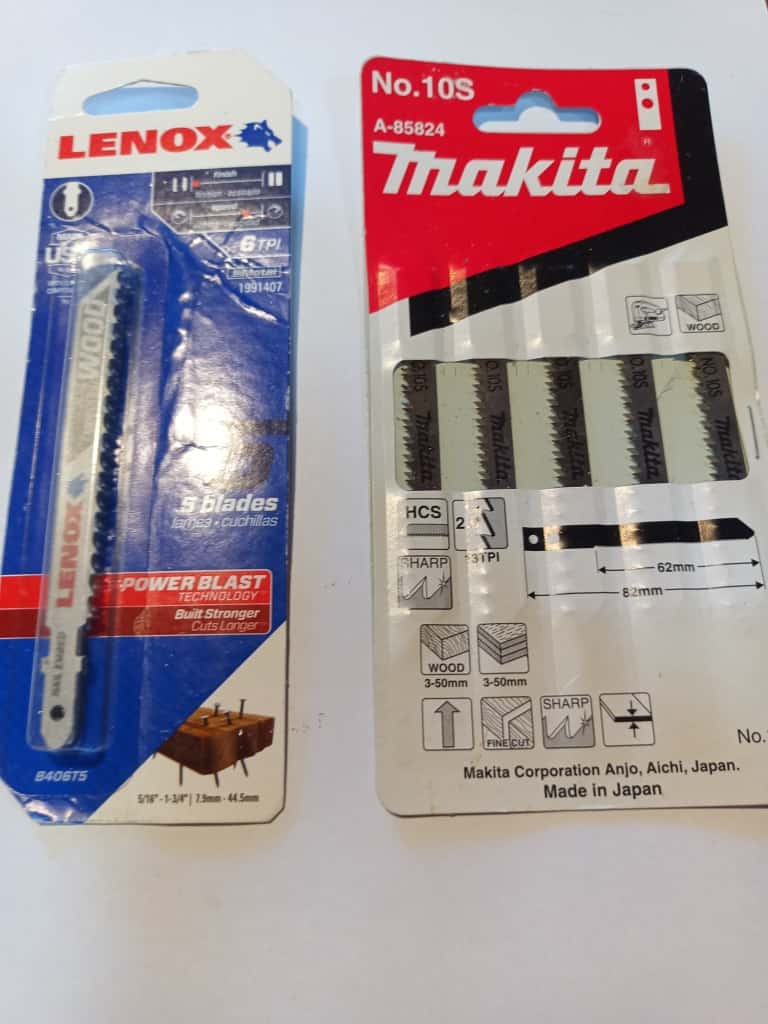

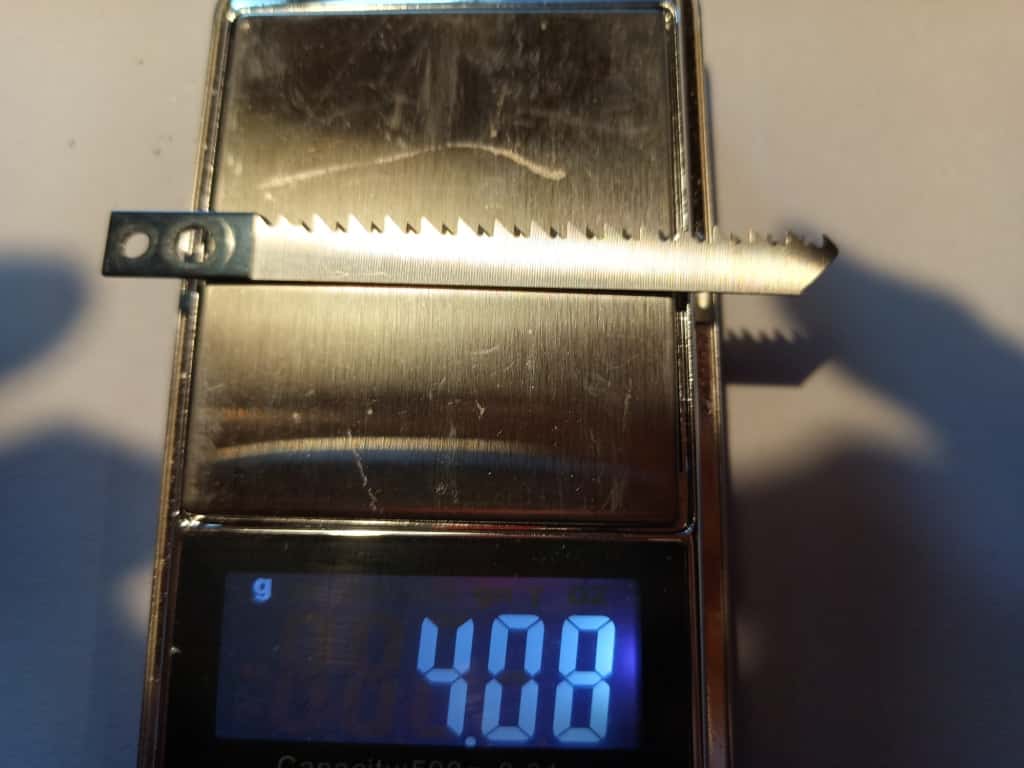

This blade is a 10S Makita brand ‘U Shank With Hole’ jig saw blade. I bought these from Sydney Tools in Traralgon. Pack of five A$8.80. Each A$1.76. Weighs 4.08 grams. The Lenox T Shanks (with hole) below weigh 7.5 grams.

It should neatly snick off a <1″ (tent) pole in 10 seconds or less. Cuts on the downstroke so the blade will not break.

Ultralight Saw

Ultralight Saw

It folds up like so. To be 3 1/4″ x 1/2″ (85mm x 10 mm).

Ultralight Saw

Ultralight Saw

Ultralight Saw

Most blades nowadays are T Shank. Some also have a hole which can be enlarged to 3mm or 1/8″ to fit a 3mm bolt.

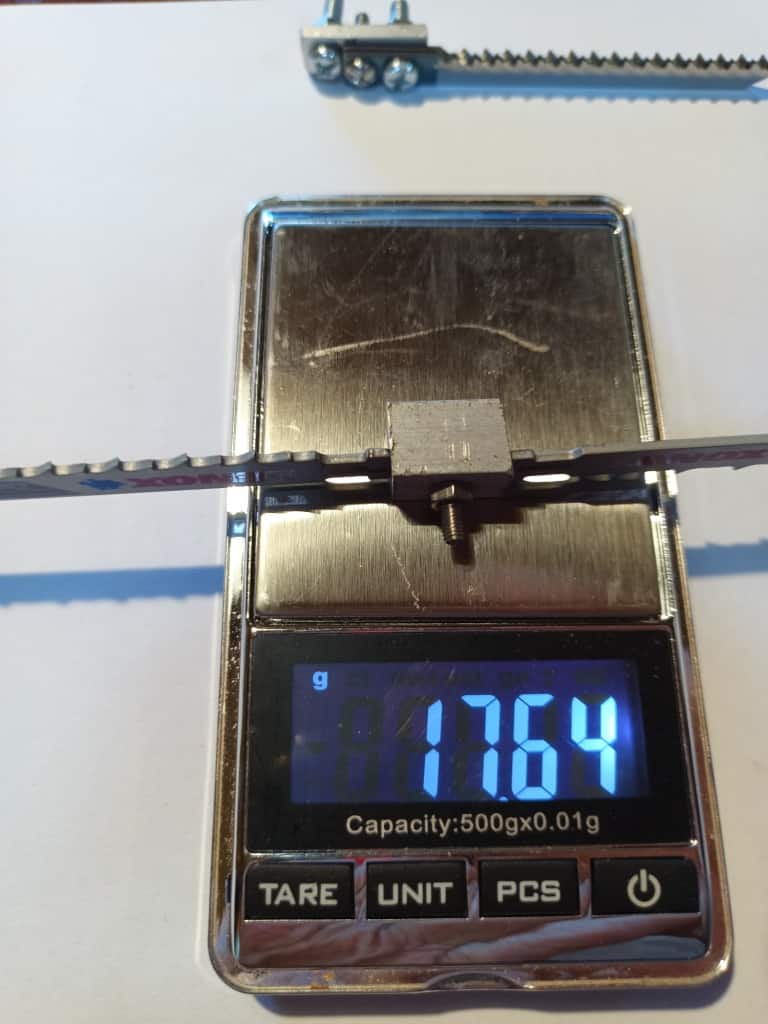

I can ultilise either of these. The ‘T shanks are slightly (1 gram) heavier but have 1/2″ more saw blade.

Ultralight Saw

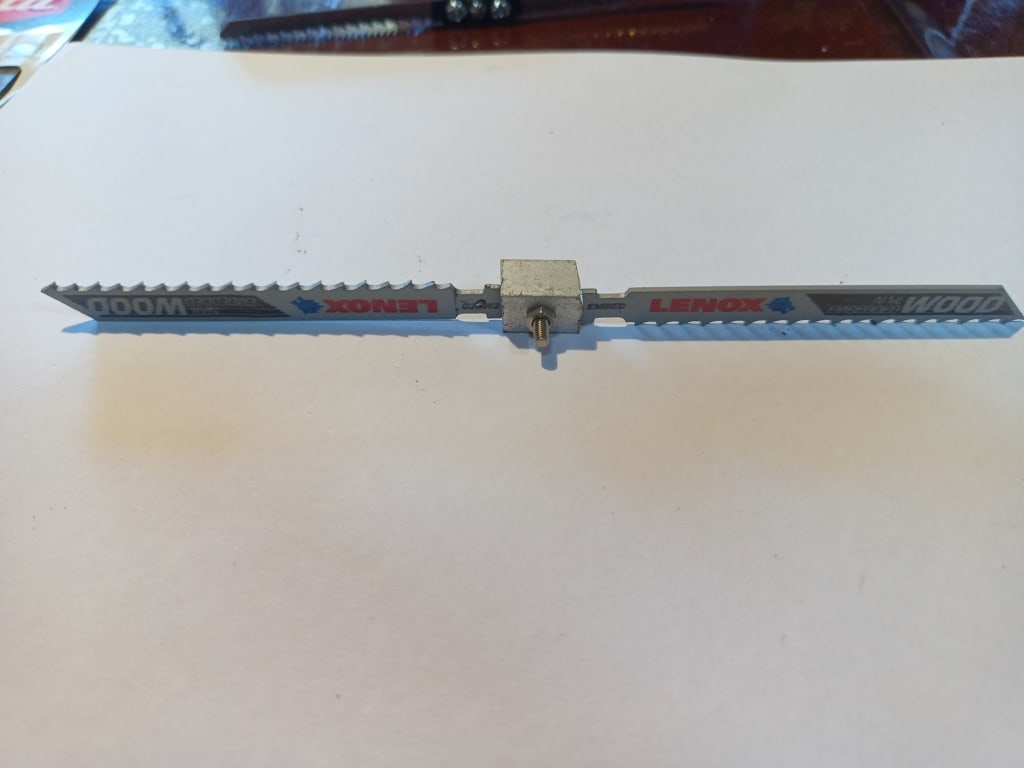

I have devised a couple of other strategies. That is a length of 1cm x 1cm x 1mm U channel. Could also be used as a handle in a single blade saw.

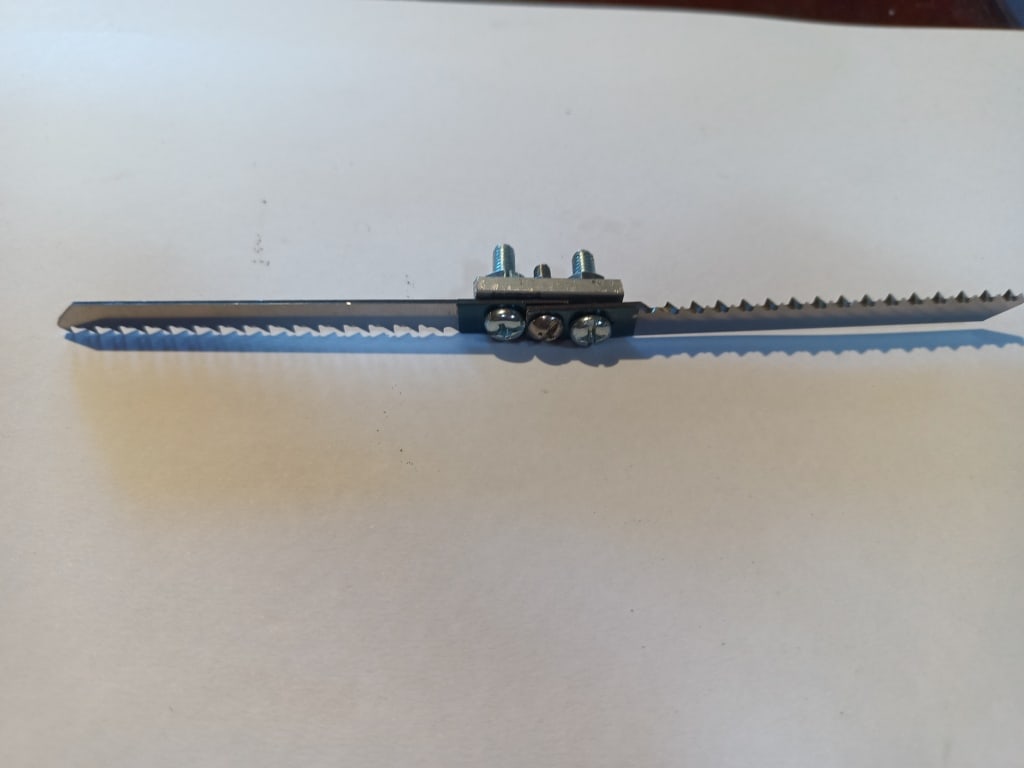

I can also use a spare blade as the handle

Ultralight Saw

Or like this with the U Shank

Ultralight Saw

The U Shank one folds

Ultralight Saw

Ultralight Saw

PS: You can see I am still ill from our Nepal trip (three weeks now) or I would be doing some real work around the farm!

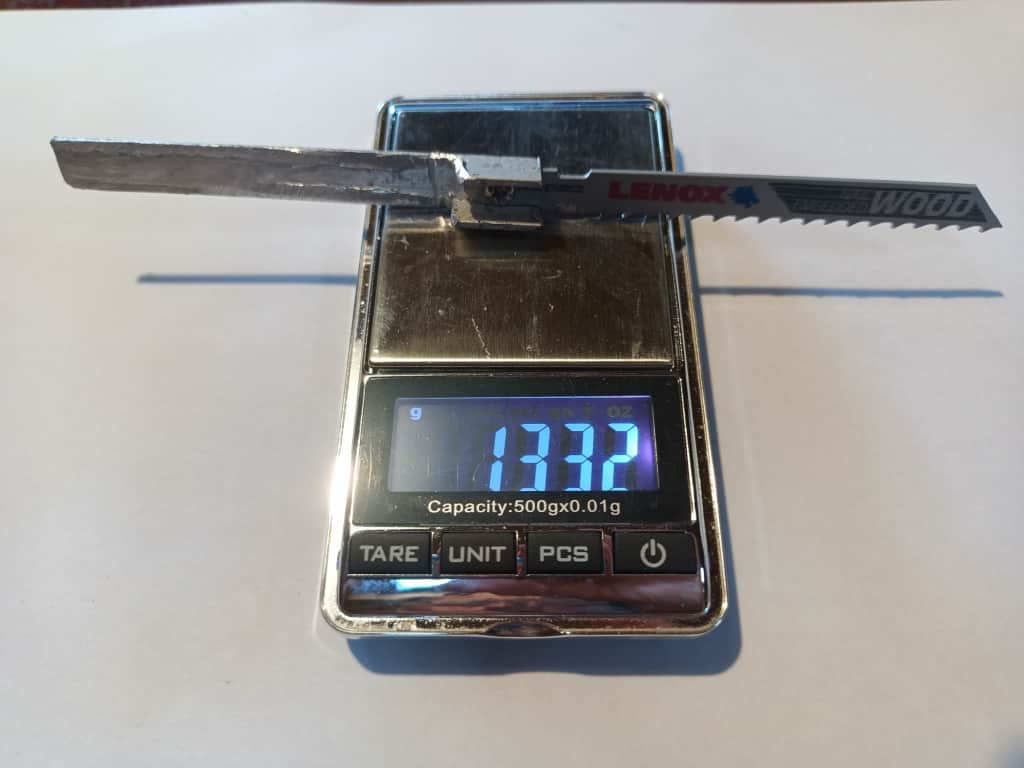

Another (single blade) model utilising the 1cm u channel and the T shank (with enlarged hole to 3mm) . This one would be foldable. There is still some ‘meat’ to cut off this one – at least a gram.

I suspect there is a T Shank with hole type blade which weighs under 5 grams. I have a Bosch one without a hole which does. If so I can make the above saw at under 10 grams! It is quite solid and usable.

Ultralight Saw

PPS: They may not be as light as Embryo Wire but more convenient.

At least they are cheap enough (at a couple of dollars each) that I can include one in each tent’s peg bag so I never have to worry about whether I have a tent pole (or not) again.

Ultralight Pruning Saw:

Here I have utilised a piece of 16 x 12 x 1.6mm aluminium channel as the handle – which fits perfectly this type of (demo) saw blade.

Ultralight Saw

The other side.

Ultralight Saw

With the handle trimmed a bit – a one ounce pruning saw.

Ultralight Saw

And folded to fit in the peg bag. It is exactly 6″ (15cm) folded.

Ultralight Saw

PS: If you can’t/won’t make your own I see that Litesmith will sell you one. Theirs weighs 21 grams and will set you back US$23.95. Theirs appears to use a Bosch T shank jig saw blade.
